Professional Petrochemical Plant Low Voltage Railways Transfer Vehicle

محل منبع	هنان ، چین
نام تجاری	BEFANBY
گواهی	CE,SGS,ISO9001
شماره مدل	KPD
مقدار حداقل تعداد سفارش	1 مجموعه/مجموعه
قیمت	قابل مذاکره
جزئیات بسته بندی	سبد انتقال توسط TARP بسته بندی می شود ، قطعات بسته بندی می شوند و مورد چوبی با کیفیت بالا قرار می گی
زمان تحویل	20-30 روز به طور معمول تحویل
شرایط پرداخت	L/C ، T/T ، Western Union
قابلیت ارائه	1500 مجموعه/مجموعه ، در هر سال

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتس اپ:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

جزئیات محصول

رنگ	سفارشی	ضمانت	24 ماه
ظرفیت بار	سفارشی	منبع تغذیه	باتری کار می کند
بندر	چینگدائو/تیانجین/شانگهای	کاربرد	صنعت سنگین ، در فضای باز ، ساخت و ساز
مواد	فولاد

پیام بگذارید

توضیحات محصول

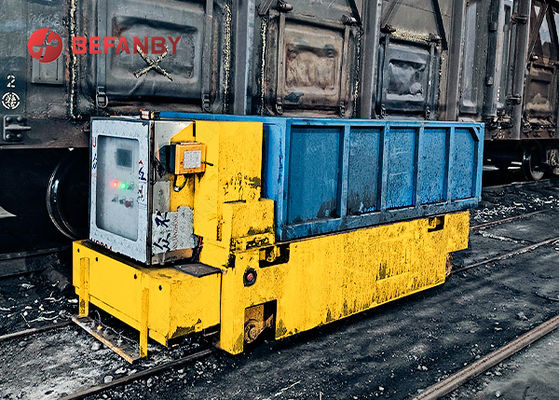

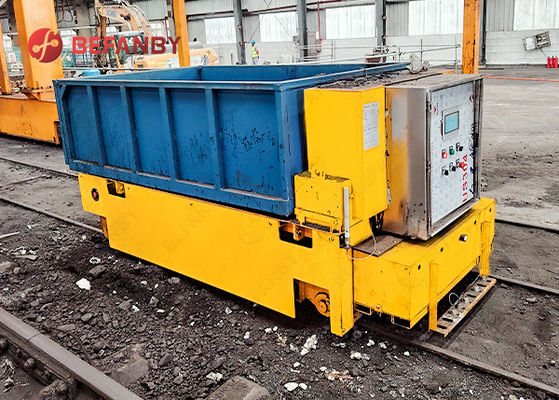

Professional Petrochemical Plant Low Voltage Railways Transfer Vehicle

Product Description

The low-voltage rail transfer vehicle introduced here is a heavy-duty material transfer vehicle designed specifically for the petrochemical industry. It operates on a low-voltage rail power supply, boasting a safe 36V voltage and stable operation. It features a strong load capacity, reliable operation, and easy maintenance.

Product Features
Low-voltage power supply, safe and reliable
A 36V or 48V low-voltage rail power supply system ensures the safety of personnel and equipment during operation.
The vehicle features a sturdy and durable box girder structure with a high load capacity. With a load capacity of 10 to 100 tons and long-term deformation resistance, it is suitable for transfering large tanks, steel pipes, steel billets, and other materials.
Smooth operation and precise positioning
Equipped with an intelligent control system, the low-voltage rail transfer vehicle enables smooth and impact-free starting and stopping, enabling precise alignment and loading and unloading, improving production line connection efficiency.
Energy-saving, environmentally friendly, and easy to maintain
Powered by electricity, it operates with low noise and no exhaust emissions. The simple rail system (customizable track routing) reduces maintenance costs and is suitable for long-term continuous operation.

Professional Petrochemical Plant Low Voltage Railways Transfer Vehicle 0

Company Profile

Professional Petrochemical Plant Low Voltage Railways Transfer Vehicle 1

Professional Petrochemical Plant Low Voltage Railways Transfer Vehicle 2

Professional Petrochemical Plant Low Voltage Railways Transfer Vehicle 3

Support Customized

Professional Petrochemical Plant Low Voltage Railways Transfer Vehicle 4

Product Parameter

Model		KPX-10t	KPX-16t	KPX-25t	KPX-30t	KPX-40t	KPX-50t	KPX-63t	KPX-80t	KPX-100t	KPX-150t
Rated Load		10	16	25	30	40	50	63	80	100	150
Table size	Length(L)	3600	4000	4500	4500	5000	5500	5600	6000	6500	10000
	Width(W)	2000	2000	2200	2200	2500	2500	2500	2600	2800	3000
	Height(H)	500	550	600	600	650	650	700	800	900	1200
Wheel Base		2600	2800	3200	3200	3800	4200	4300	4700	4900	7000
Rail Inner Gauage		1435	1435	1435	1435	1435	1435	1435	1800	2000	2000
Wheel Diameter		300	350	400	400	500	500	600	600	600	600
Wheel Quantity		4	4	4	4	4	4	4	4	4	8
Ground Clearance		50	50	50	50	50	50	75	75	75	75
Running Speed		25	20	20	20	20	20	20	20	20	18
Motor Power		2	2.2	3.5	4	5	6.3	8	10	15	15
Battery Capacity		160	180	250	250	300	330	400	400	440	600
Battery Voltage		48	48	48	48	48	48	48	72	72	72
Max Wheel Load		42.6	64.5	94.5	110.4	142.8	174	221.4	278.4	343.8	265.2
Reference Weight		4.2	5.5	6.5	6.8	7.6	8	10.8	12.8	14.6	26.8

Product Feature

Professional Petrochemical Plant Low Voltage Railways Transfer Vehicle 5

Applications

Equipment transportation for oil refineries

Transfer of chemical raw materials and parts

Transport of circular pipe components and high-temperature workpieces

Logistics transportation and warehouse storage

Shipping

Professional Petrochemical Plant Low Voltage Railways Transfer Vehicle 6

Related Products

Professional Petrochemical Plant Low Voltage Railways Transfer Vehicle 7

FAQ

1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.

Product Tap: Material Handling Cart , Rail Transfer Cart
